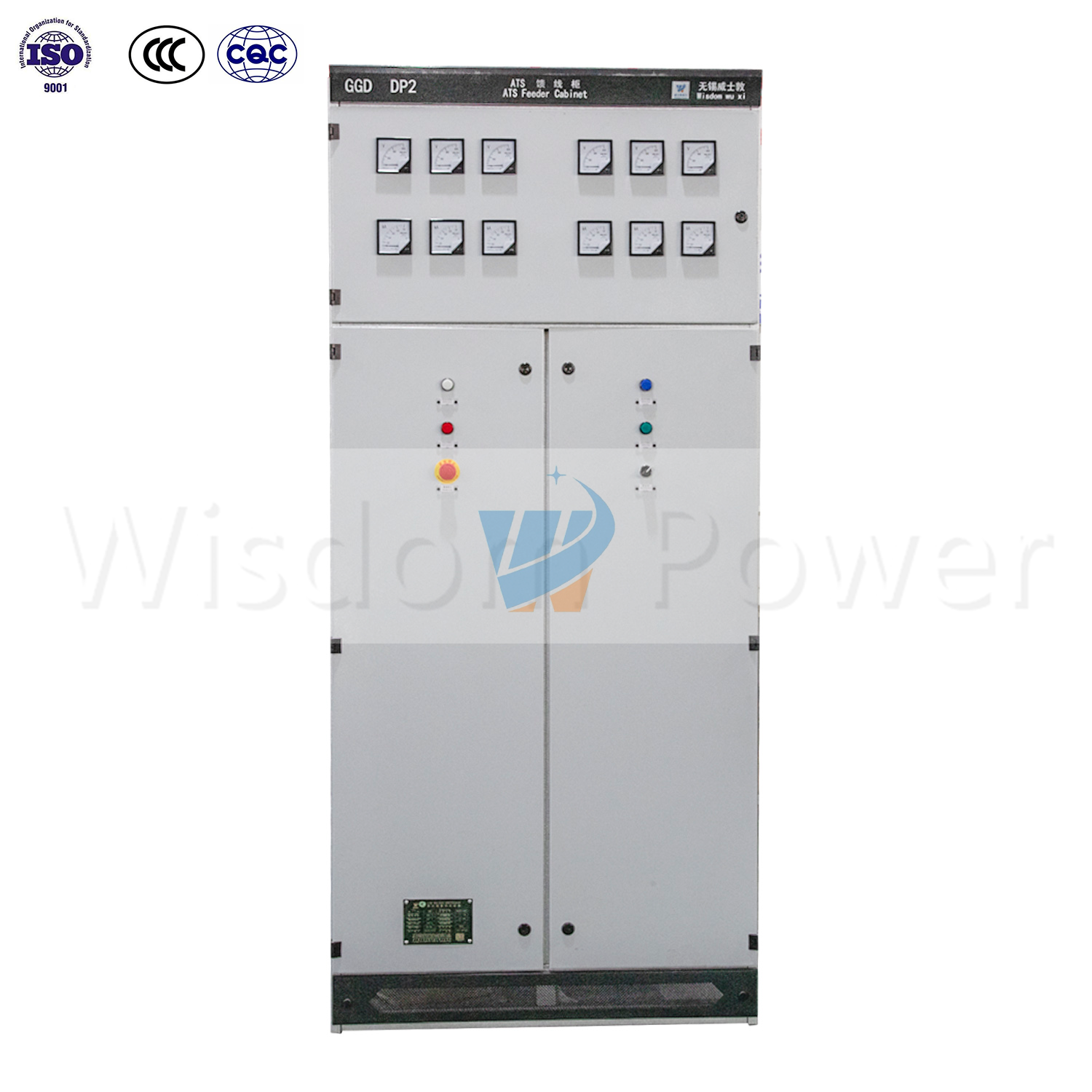

The ATS Type Power Distribution Device Is Suitable For Main Equipment Power Conversion Systems And Is Used As The Main Power Supply Place For Fire Protection, Hospitals, Shopping Malls, Projects, Plateau Buildings, Etc. Where Power Outages Are Not Allowed.
The Dual Power Automatic Transfer Switch Using Domestic And International Advanced ATS Technology Will Not Cause Two Power Sources To Be Connected At The Same Time Even Under Abnormal Circumstances And Can Implement Manual/Automatic Conversion. The Applicable Scope Is a Rated Voltage of 400V, Frequency of 50Hz, And Rated Current From 32A To 3200A. Through Optimized Design, It Has a Small Size, Easy Operation, Beautiful Appearance, Safe And Reliable Use, And Is The Latest Innovation In The New Century.
Auto Transfer Switch (ATS) Can Automatically Transfer Load Between The Main Power And The Emergency Power (Generating Set)Without The Operator. Auto-Start Diesel Generator Set Or Auto Shut Down Diesel Generator Set, This Is A Core Task OfATS. ATS Is A Bridgebetween Diesel Genset And Utlity Power. Once The Utility Power (=Main Power) Falures, The ATS Will Automatically Switch To The Loadswires To Connect the Genset Power Supply and Automatically Start the Diesel Generator Set To Generate Electricity. Once The Utility Power Comesoack Recovery,. AlS Wll Automatcaly Swtch The Oad Wires To Connect Utlty Power Suoolv, Automauicallv Stop The Genset AiterwaldsThe Whole Process Does Not Require Manual Operation.
Our Diesel Genset Is Controlled By ATS For Auto-Start Genset & Auto-Stopgenset. Besides. ATS Will Along Monitor The Position Of Utility Power (Normal Or Abnormal).
1. Adopt Double-Row Composite Contacts, Horizontal Connection Mechanism, Micromotor Pre-Energy Storage, And Microelectronic Control Technology To Basically Achieve Zero Flashover (No Arc Extinguishing Device)
2. Use Reliable Mechanical Interlocking And Electrical Interlocking Technology
3. Adopt Zero-Crossing Technology
4. It Has an Obvious On-Off Position Indication And Padlock Function, Which Can Reliably Realize The Isolation Between The Power Supply And The Load. It Has High Reliability And A Service Life Of More Than 8,000 Times.
5. Mechatronics Design, Switch Conversion Is Accurate, Flexible And Reliable, Good Electromagnetic Compatibility, Strong Anti-Interference Ability, No External Interference, High Automation Program
6. The Fully Automatic Type Does Not Require Any External Control Components.
